USB Joystick With Pad

A great multiple switch for people who can maneuver a joystick but need a large one
Item # Product Description Photo Price
USB Connector
TA-25312

DB9 Connector
TA-50120
USB Joystick With Pad

A great multiple switch for people who can maneuver a joystick but need a large one. The joystick has four positions, and the fifth switch is activated by pressing the brown raised pad. This is a very rugged switch! Tactile and auditory feedback is provided.

Available in two versions:
With USB connector
This version enables the user to control the computer cursor or emulate a joystick.
Use with a computer with a USB port to control mouse directional movements, as well as mouse functions such as click, press and hold and release. To do this, you need to combine it with the USB Mouse Mover adaptor, or the 9-Pin to USB Cable.

With 9-pin D female connector
This is one of the •Multiple Switches• by TASH. A Multiple Switch is five switches in one, and is used to control any device that requires five single switches for operation.

Choose the 9-pin D female connector primarily for wheelchair control. The 9 pin D female version can be adapted to:
Output to five single switch •mono• plugs for controlling any five devices where each is normally operated by a single switch. The adapter you need for this is the CA-6 adaptor.
Note: The 9 pin D female connector is not for a serial connection.

Note: This is not a standard computer joystick • but is a switch allowing for five different switch activations by moving the joystick.

Specifications
Dimensions: 28cm x 18cm x 12cm (11• x 7• x 4.75•)
Activating Force: 200g (7oz)
Travel Before Activation • Ball: 0.5mm (0.02•)
Travel Before Activation • Pad: 2mm (0.1•)
Current: 30VDC max 1A

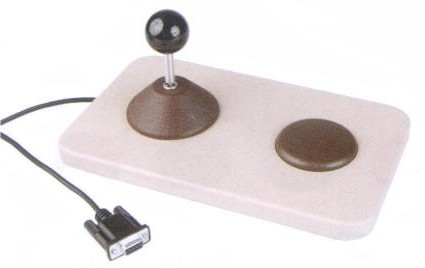

DB9 Plug
image of joystick with pad with DB9 plug

USB Plug

image of joystick with pad with USB plug

DB9 Plug
$339.00
USB Plug
$332.00
